Driving Type:4x2 / 6x4
Cabin Type:Double Berth
Horse Power:320HP / 440HP / 540HP
Transmission:HW20716, 16F & 2R
Chassis Model |
ZZ4257V323HD1 |
Driving Type |
LHD (RHD is optional) |
Cabin |

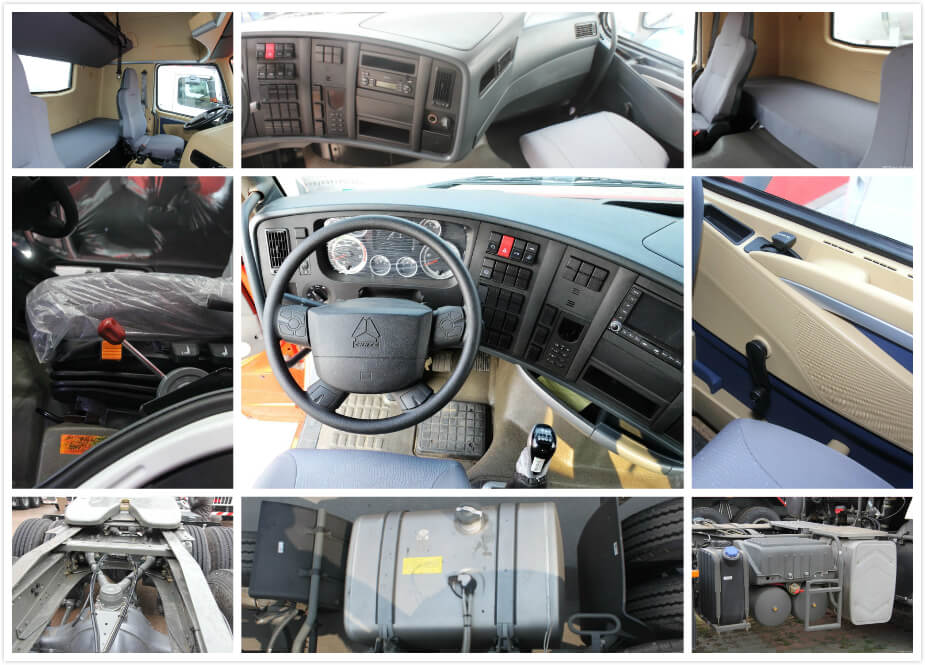

T7H-G, with two sleepers and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber. |
Engine |
Engine model: MC11.44-40, 440 HP, MAN technology |
Transmission |
HW20716, 16F & 2R |
Steering |
ZF power steering, modol ZF8118, hydraulic steering with power assitance; |
Front Axle | HF7, 1x7000 KGS Steering with doubleT-cross section beam |
Rear Axle |
MCY13, 2x13000 KGS |
Propeller Shaft |
Double universal joint propeller shaft with gear-shaped coupling flange |
Chassis |
Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members |
Brake |
Service brake: dual circuit compressed air brake |
Electrics |
Operating voltage: 24 V, negative grounded |
Tyres |
12.00R20, one spare tyre |
Fuel Tank |
400L |
Fifth Wheel |
90# |
Overall Dimension |
7100*2550*3800mm |
